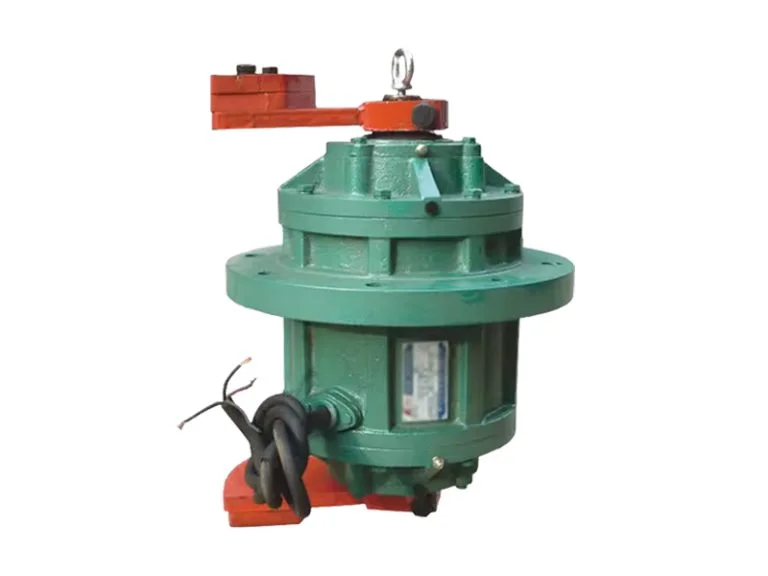

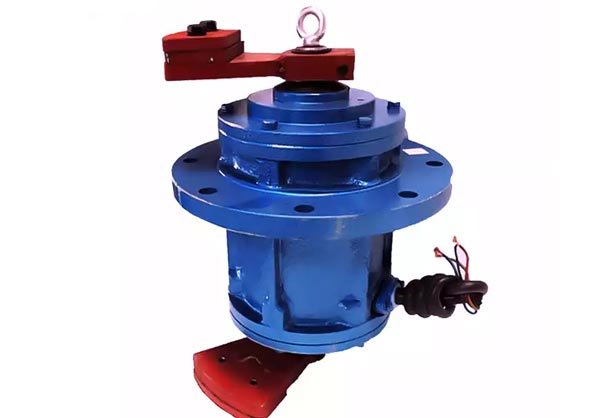

The Vertical Vibration Motor is a highly efficient and durable three-phase asynchronous vibration motor. It is a powerful and stable vibration source for rotary vibrating screen, ultrasonic vibrating screen, filter screen and other screening equipment. And it supports customised service to meet the needs of different industrial scenarios.
- Voltage: 110V, 220V, 380V, 415V, 460V, 480V
- Phase: 3-phase
- Core Component: Coil, 100% Copper Wire
- Excitation: 1-75kN
- Power: 0.12-3.7kW
- Power Frequency: 50Hz
- Rotational Speed: 1450r/min
- Ambient Temperature: ≤40℃
- Application: can be used with rotary Vibrating screen, ultrasonic vibrating screen, filter sieve and other screening equipment.
- Can be customized

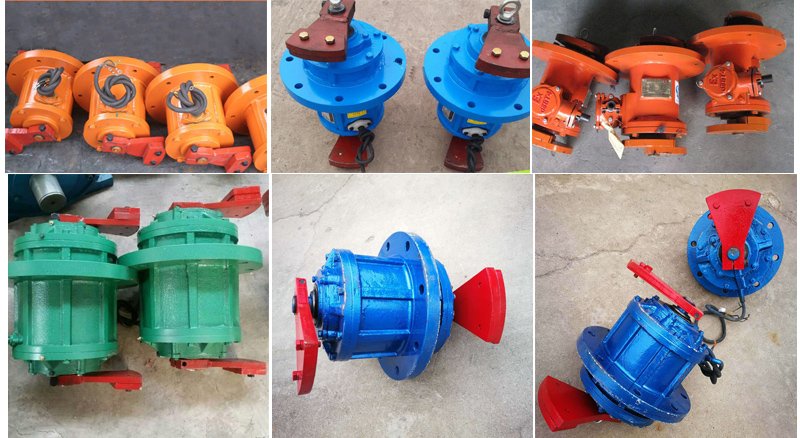

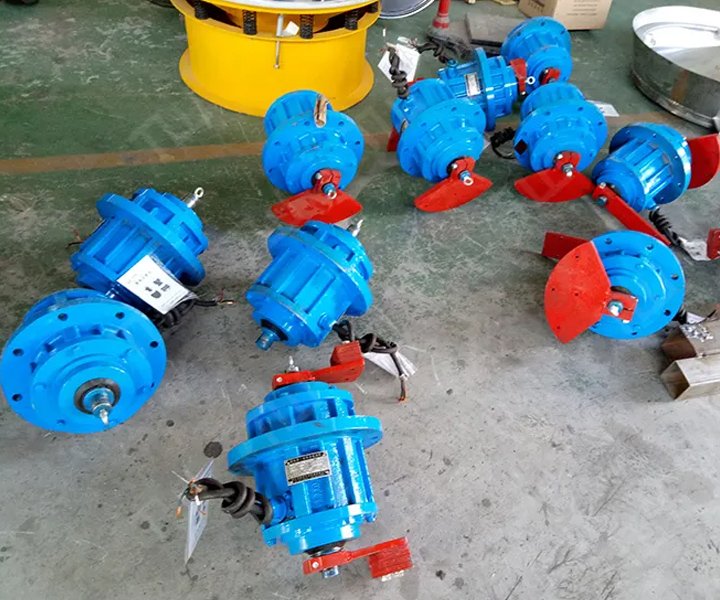

types of vertical vibration motors
Vertical vibration motors can be divided into the following categories according to different design features and application requirements:
- Vertical Vibration Motors: Standard three-phase asynchronous motor, adjustable excitation force, often used in conventional vibrating screens, feeders and other equipment.
- Explosion-proof vertical vibration motor: Explosion-proof standards, commonly used in chemical industry, coal mine and other flammable and explosive environment.
- Frequency control type vertical vibration motor: Adjustable vibration frequency and amplitude, commonly used in fine screening or special process requirements.
- High-temperature resistant vertical vibration motors: Using special insulation materials and heat dissipation structure, commonly used in high temperature environment.
- Waterproof and dustproof vertical vibration motors: High protection level (IP66/IP67), commonly used in wet and dusty working conditions.
- Customised vertical vibration motors: Can be adjusted according to the customer’s needs of the voltage, power, mounting mode or special features.
Specifications
| Model | Maximum Excitation Force | Speed | Power | Current | Notes |
| (KN) | (rmp) | (kw) | (A) | ||
| YZUL-3-2 | 3 | 3000 | 0.25 | 0.62 | Upper flange |
| Middle flange | |||||
| YZUL-5-2 | 5 | 3000 | 0.4 | 1.15 | Upper flange |
| Middle flange | |||||
| YZUL-8-2 | 8 | 3000 | 0.55 | 1.45 | Upper flange |
| Middle flange | |||||
| YZUL-10-2B | 10 | 3000 | 0.75 | 1.84 | Upper flange |
| Middle flange | |||||
| YZUL-10-2A | 10 | 3000 | 1.1 | 2.3 | Upper flange |
| Middle flange | |||||
| YZUL-20-2 | 20 | 3000 | 1.5 | 3.1 | Upper flange |
| Middle flange | |||||
| YZUL-3-4 | 3 | 1500 | 0.18 | 0.6 | Upper flange |
| Middle flange | |||||
| YZUL-5-4 | 4 | 1500 | 0.25 | 0.74 | Upper flange |
| Middle flange | |||||
| YZUL-8-4 | 8 | 1500 | 0.55 | 1.5 | Upper flange |
| Middle flange | |||||
| YZUL-10-4 | 10 | 1500 | 0.75 | 1.85 | Upper flange |
| Middle flange | |||||
| YZUL-15-4 | 15 | 1500 | 1.1 | 2.58 | Upper flange |
| Middle flange | |||||
| YZUL-30-4 | 30 | 1500 | 1.5 | 3.6 | Upper flange |
| Middle flange | |||||
| YZUL-50-4 | 50 | 1500 | 2.2 | 5.1 | Middle flange |
| YZUL-3-6 | 3 | 1000 | 0.25 | 1.92 | Upper flange |
| Middle flange | |||||
| YZUL-5-6 | 5 | 1000 | 0.37 | 1.22 | Upper flange |
| Middle flange | |||||
| YZUL-10-6 | 10 | 1000 | 0.75 | 2.2 | Upper flange |
| Middle flange | |||||
| YZUL-15-6 | 15 | 1000 | 1.1 | 3.1 | Upper flange |
| Middle flange | |||||
| YZUL-20-6 | 20 | 1000 | 1.5 | 4 | Upper flange |
| Middle flange | |||||
| YZUL-30-6 | 30 | 1000 | 2.2 | 5.6 | Middle flange |
Benefits of Vertical Vibration Motor
The Vertical Vibration Motor, with its excellent performance and stability, has become the core power unit for vibratory screening, material handling and processing. Come together to understand its advantages
- Powerful vibration force: Provides efficient vertical vibration force to ensure efficient operation of material conveying, screening and other processes.
- Stable and Reliable: Stable operation, support long time continuous work, low failure rate, guarantee production stability.
- Low-noise design: Low noise level optimises the working environment and meets the requirements of environmental protection and occupational health.
- Compact structure: small size, easy installation, space saving, adapt to a variety of site conditions.
- Adjustable parameters: The vibration force and frequency can be flexibly adjusted to meet different material handling requirements.
- Wide applicability: Applicable to coal, metallurgy, chemical industry, building materials and other industries, compatible with vibrating screen, feeder and other equipment.
These advantages make it the ideal power solution for industrial vibration.

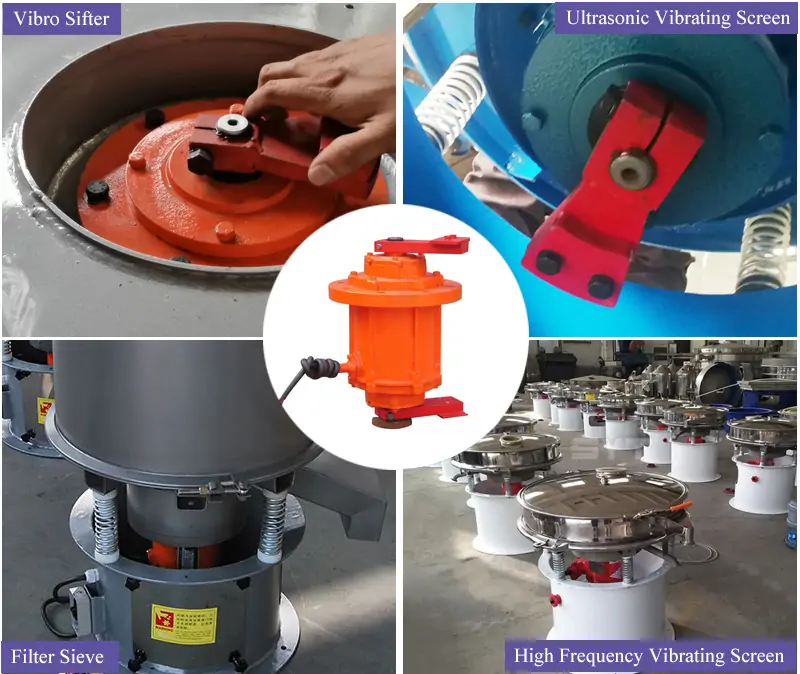

Application
Vertical Vibration Motor is the core power source of industrial vibration equipment, which is mainly used in the following scenarios:
- Vibratory Screen: Commonly used in linear sieve, rotary vibration sieve, ultrasonic vibration sieve and other equipment.
- Vibratory conveyor: Drive vibrating feeder, conveyor, commonly used in automated production lines and quantitative feeding of granular materials.
- Vibratory compaction: Commonly used in the construction industry, high-frequency vibration to improve the density of the material, enhance the strength of the product.
- Vibratory drying equipment: Commonly used in chemical, food and other industries vibrating fluidised bed dryer
Vertical Vibration Motor is widely used in mining, metallurgy, chemical, food, environmental protection and other industries, and can be customised according to different working conditions to meet the production needs of different industries!
Custom Vertical Vibration Motor
Please provide the working parameters (e.g., power, speed) and installation method of the sieve machine, and explain the material characteristics (e.g., particle size, handling capacity):
- Power and voltage: e.g., 1.5kW, 380V (the power size and voltage level should be specified, such as 220V/380V/415V, etc.).
- Speed or number of poles: e.g. 1500rpm (4-pole motor) or 3000rpm (2-pole motor).
- Installation and size: for example, flange mounting (B5 vertical) or base mounting (B15), and need to provide interface dimensions (such as flange aperture, shaft diameter, etc.).
- Excitation force or load requirements: for example, the excitation force is 5kN (need to clarify the load characteristics of the vibrating screen, such as material weight, vibration amplitude, etc.).
