Metal Powder Screening Solution for Additive Manufacturing Powder

Project Summary

Project Background

A Korean metal powder manufacturer required a more stable screening process for additive manufacturing powder.

The customer needed to classify metal powder into different particle sizes, including 100 mesh, 200 mesh, and 325 mesh. During production, the existing screening process faced several problems:

• Fine powder below 325 mesh easily caused screen blockage, reducing screening efficiency;
• Particle size distribution was difficult to maintain consistently;
• The equipment could not provide stable processing capacity of 200-500 kg/h;

The production environment required ATEX explosion-proof protection due to the characteristics of metal powder.

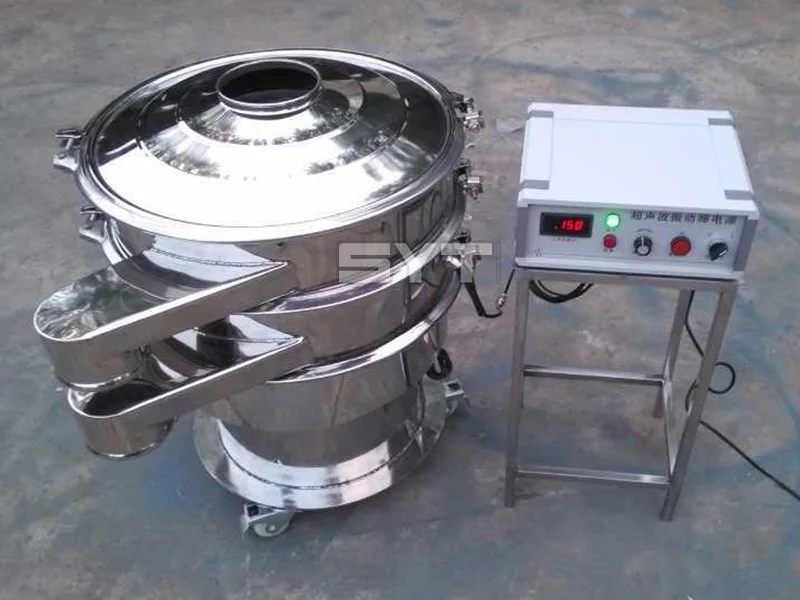

After evaluating the material properties and screening requirements, Sanyuantang engineers recommended a customized Metal Powder Screening Solution based on a SYT-1200-1S ultrasonic vibrating screen.

Sanyuantang Solution

For this application, the main challenge was not only achieving the required capacity, but also maintaining stable screening performance when handling fine metal powder.

Based on the powder characteristics and required mesh sizes, Sanyuantang selected a 1.2-meter ultrasonic vibrating screen instead of a conventional screening machine.

The final configuration included:

• SYT-1200-1S ultrasonic vibrating screen;
• 325 mesh stainless steel screen;
• Ultrasonic generator and transducer system;
• SUS316L stainless steel contact parts;
• SUS304 stainless steel support structure;
• ATEX explosion-proof electrical design.

The ultrasonic system applies high-frequency vibration directly to the screen mesh, helping fine metal powder pass through the openings more effectively and reducing blockage during continuous operation.

Product Configuration

For more product information, please refer to our product information or contact us:

Ultrasonic Vibrating Screen

Why Recommend Ultrasonic Vibrating Screen for Metal Powder?

During fine powder screening, especially for 325 mesh applications, conventional vibrating screens may experience problems such as mesh blockage, powder accumulation, and unstable screening performance.

Based on our experience with fine powder applications, Sanyuantang recommended ultrasonic screening technology for this project for the following reasons.

• Improved Fine Powder Screening Performance
  • The ultrasonic system creates high-frequency vibration on the screen surface, helping fine metal powder move through the mesh openings more smoothly. This reduces powder accumulation on the screen surface and improves continuous screening stability.
• Better Particle Size Control
  • For metal 3D printing powder, consistent particle size distribution directly affects powder spreading and final product quality. The ultrasonic vibrating screen helps separate different particle sizes more effectively and supports stable 100/200/325 mesh classification.
• Reduced Risk of Powder Contamination
  • Since metal powder is a high-value material, preventing contamination is important. The material contact parts of this equipment are manufactured from SUS316L stainless steel to reduce contamination risk during screening.
• Suitable for Safety-Controlled Production
  • Metal powders may create combustible dust risks during processing. The ATEX explosion-proof design provides additional protection for the customer’s production environment.

Before and After Comparison

Project Results

The equipment was installed and commissioned in December 2025.

After applying the Sanyuantang ultrasonic vibrating screen, the customer’s production line achieved more stable fine metal powder screening performance.

The main improvements included:

• Stable Production Operation
  • The SYT-1200-1S ultrasonic vibrating screen achieved the customer’s required processing capacity range of 200-500 kg/h and maintained stable operation during production.
• Improved Powder Classification
  • The screening process provided better control of 100, 200, and 325 mesh particle classification, helping the customer maintain more consistent additive manufacturing powder quality.
• Reduced Screening Problems
  • The ultrasonic system reduced mesh blockage issues commonly found in fine metal powder screening, improving equipment availability and reducing manual cleaning requirements.
• Improved Production Safety
  • The ATEX explosion-proof configuration helped the customer meet safety requirements for metal powder processing.

Sanyuantang Recommendation for Metal Powder Screening

For metal powder screening applications, equipment selection should be based on:

Different metal powders, including stainless steel powder, alloy powder, titanium powder, and other additive manufacturing materials, may require different screening configurations. Sanyuantang provides customized Metal Powder Screening Solutions according to material characteristics, production requirements, and safety standards.

Conclusion

This project shows that fine metal powder screening requires a balance between screening accuracy, stable capacity, material purity, and production safety. By combining ultrasonic screening technology with ATEX explosion-proof design, Sanyuantang provided a practical screening solution for a Korean additive manufacturing powder producer.

The SYT-1200-1S ultrasonic vibrating screen is suitable for applications involving metal 3D printing powder, powder metallurgy materials, alloy powders, and other fine powder processing industries.

Contact Sanyuantang for Customized Screening Solutions

If you are facing challenges with:

• Fine metal powder screening;
• 325 mesh powder blockage;
• Unstable particle size distribution;
• High-purity powder processing;
• Explosion-proof requirements;

Sanyuantang can provide customized screening solutions based on your material characteristics, required capacity, mesh size, and production environment.

Contact our engineers for professional equipment selection and material testing support.

More Recommended Screening Machine

FAQs

1. What is a metal powder screening solution?

A metal powder screening solution is a customized process designed to classify metal powders by particle size, remove oversized particles, and maintain consistent powder quality for applications such as additive manufacturing and powder metallurgy.

2. Why is ultrasonic screening used for metal powder processing?

Fine metal powders can easily block traditional screen meshes during continuous operation. Ultrasonic screening technology applies high-frequency vibration to the screen surface, helping maintain mesh openness and improving fine powder screening efficiency.

3. Can ultrasonic vibrating screens be used for additive manufacturing powder?

Yes. Ultrasonic vibrating screens are well-suited for additive manufacturing powders because they provide precise particle classification and help maintain the stable powder characteristics required for metal 3D printing.

4. What mesh sizes are commonly used for metal powder screening?

The required mesh size depends on the application. For additive manufacturing powders, common screening requirements include 100-mesh, 200-mesh, and 325-mesh classifications to control particle size distribution.

5. Why is SUS316L stainless steel recommended for metal powder screening?

SUS316L stainless steel provides good corrosion resistance and helps reduce contamination during powder processing. It is commonly selected for applications requiring high material purity.

6. How can Sanyuantang customize a metal powder screening solution?

Sanyuantang evaluates factors including powder characteristics, particle size distribution, required capacity, material requirements, and safety standards to provide customized screening equipment solutions.
