Ultrasonic Sieve Machines for Fine Powder Screening

In modern industrial processing, handling micron-level fine powders often leads to serious issues such as mesh clogging, agglomeration, and electrostatic adhesion. Traditional vibrating screens are often inefficient when processing materials finer than 200 mesh.

Sanyuantang has developed an advanced ultrasonic sieve machine (ultrasonic vibrating screen) that introduces high-frequency, low-amplitude ultrasonic vibration as an efficient fine powder screening solution, effectively solving these industry challenges.

What Is an Ultrasonic Sieve?

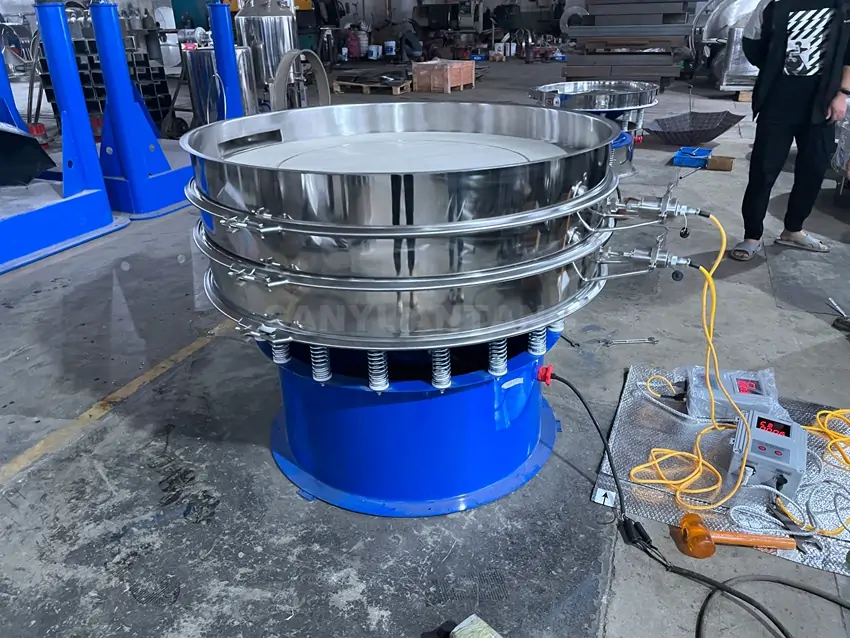

An ultrasonic sieve, also known as an ultrasonic screening machine, is an advanced screening device built on the basis of a conventional rotary vibrating screen, combined with a high-frequency ultrasonic mesh cleaning system.

It converts electrical energy (220V/50Hz or 110V/60Hz) into high-frequency energy (36–38 kHz). Through an ultrasonic transducer, this energy is transformed into mechanical vibration, generating micro-amplitude ultrasonic waves on the screen surface.

This technology effectively eliminates mesh clogging (mesh blinding) and keeps materials suspended on the screen surface, significantly improving high precision sieving efficiency and throughput.

For a deeper understanding of particle separation principles, refer to:
https://www.britannica.com/technology/sieving

Sanyuantang Ultrasonic Sieve: Advantages in Fine Powder Screening

Eliminates Mesh Blinding and Mesh Clogging Issues

Designed for materials with high adsorption, strong static electricity, easy agglomeration, or low density, the ultrasonic system ensures that the mesh remains continuously open.

Its self-cleaning function eliminates the need for bouncing balls, avoiding secondary contamination of materials.

Improves High Precision Sieving Accuracy and Capacity

Compared with conventional vibrating screens:

• Screening accuracy can be improved by 1–100%
• Processing capacity can increase by 0.5 to 10 times

It performs especially well when processing silicon carbide, alloy powders, pigments, and pharmaceutical intermediates.

Protects Material Properties

The smoother screening process reduces material residence time on the mesh surface, effectively preventing heat-sensitive materials from degradation due to friction.

Intelligent Control System

Sanyuantang adopts a new-generation ultrasonic controller with automatic frequency tracking. It adjusts output power based on load conditions, ensuring stable performance during 24/7 continuous operation.

Learn more about ultrasonic technology in industrial applications:
https://www.sciencedirect.com/topics/engineering/ultrasonic-transducer

Technical Specifications

To meet different production requirements, Sanyuantang offers a full range of models from laboratory to large-scale industrial applications:

Note: Capacity may vary depending on material properties such as bulk density and moisture content.

Applications

Sanyuantang ultrasonic sieve machines are widely used in industries requiring high-precision screening:

• Chemical Industry: resin powder, pigments, polyethylene powder, industrial chemicals
• Food Industry: flour, sugar powder, starch, milk powder, seasonings
• Metal & Metallurgy: aluminum powder, copper powder, alloy powder
• Pharmaceutical Industry: herbal powder, APIs, pharmaceutical intermediates

These applications highlight the importance of ultrasonic sieve technology in industrial powder processing.

Industry standards for powder processing:
https://www.iso.org/home.html

How to Choose the Right Ultrasonic Sieve Machine for Fine Powder Screening?

When selecting a Sanyuantang ultrasonic sieve, consider the following factors:

• Material name and bulk density
• Target mesh size (typically 80–635 mesh)
• Required processing capacity (kg/h)
• Construction material (SS304 / SS316L)
• Special requirements (explosion-proof design, mobile base, etc.)

Conclusion

For production lines requiring high precision and high efficiency, ultrasonic sieve technology has become an essential part of modern fine powder screening systems. It is no longer optional, but a necessary solution.

Sanyuantang is committed to providing customized fine powder screening solutions for global customers. If you are facing difficult screening challenges, feel free to contact us for free material testing and solution design.

FAQs

Q1: What is an ultrasonic sieve used for?

A: It is used for fine powder screening, especially for materials prone to clogging, agglomeration, or static adhesion.

Q2: What are the advantages of an ultrasonic sieve?

A: It prevents mesh clogging, improves screening accuracy, and significantly increases production capacity.

Q3: What mesh size can an ultrasonic sieve handle?

A: It typically handles materials from 60 to 635 mesh, depending on the application.

Q4: Can ultrasonic sieving increase production capacity?

A: Yes, it can increase capacity by 0.5 to 10 times compared to traditional vibrating screens.

Q5: Is ultrasonic sieving suitable for pharmaceutical applications?

A: Yes, it is widely used in pharmaceutical industries due to its high precision and clean screening process.

Q6: How do I choose the right ultrasonic sieve?

A: You should consider material properties, required mesh size, capacity, and any special requirements such as explosion-proof design.

About Sanyuantang

Sanyuantang is a leading manufacturer of screening equipment, specializing in high-quality ultrasonic sieve and ultrasonic vibrating screen systems. With advanced technology, strict quality control, and comprehensive service support, we help industries worldwide improve screening efficiency.

If you’re unsure which equipment best fits your production needs, consult our engineering team for tailored recommendations and quotations.
